Executive Overview Dashboards

The Dashboard in SD Elements provides visual analytics for executive visibility into projects and the ability to export data for self-service reporting. The original dashboard, or Dashboard Classic, is also available with its former reporting functionality.

Activate and deactivate Dashboard

You can activate the Dashboard or return to the Dashboard Classic.

From the Reporting dropdown menu, select Dashboard or Dashboard Classic

500

Both dashboards appear as tabs along with Global Reports.

Risk Policy compliance reports

Risk Policy compliance by Business Unit

The Risk Policy compliance widget displays the distribution of compliant and non-compliant projects per Business Unit.

Hover over sections of the bar chart to see the percentage and numbers of compliant and non-compliant projects.

500

You also have the ability to export the aggregate number of compliant and non-compliant projects for each Business Unit by clicking on the export button in the top right.

500

This report allows you to analyze the compliance status of each business unit on a per project basis.

Compliant vs non-compliant projects

This widget provides metrics to compare non-compliant vs non-compliant projects.

500

You can export the number of compliant and non-compliant projects by clicking on the export button in the top right.

300

This report allows you to quickly monitor the work left for achieving compliance.

300

SD Elements usage metrics

Activities by Business Unit

This widget shows you the aggregate number of activities across all projects in every Business Unit broken down by week. You can use this in conjunction with the activity log export for auditing purposes.

500

You can also hover over the point in time to get a snapshot of activities across the Business Unit of that particular week.

You can export the number of active entities in your Business Unit by clicking on the export button in the top right.

400

This report provides an analysis of the Business Units that have more active SD Elements Users and those with higher user adoption.

Active projects

This widget displays the number of Active Projects (excluding Release Projects) in each Business Unit during the last three months.

500

You can hover over each bar to see the exact number of licenses used.

This widget provides a view into the number of base projects across all Business Units.

Project management reports

Project health report

This widget breaks down the aggregate number of projects based on the compliance health of High priority Tasks (priority rating 7 or higher) that have been completed.

300

You can hover over the pie chart to see the distribution of projects with a particular health status by percentage and the number of projects that make up that percentage.

500

You can export a project health report by clicking on the export button in the top right.

400

This report allows executive users to monitor the overall security and compliance health of the organization. It can also be used to monitor the compliance posture of projects on a regular basis.

Task completion

This widget shows the distribution of Tasks and Custom Tasks based on their completion status.

500

You can hover over each section of the pie chart to see the distribution of Tasks as a percentage and number based on an Incomplete, Complete, or Not Applicable status.

You can also export a Task completion report by clicking on the export button in the top right.

300

Risk Classification by project

This widget provides a table of all projects in the organization against their Risk Classification. This view consolidates all projects against their classifications to help you manage the risk of sensitive Tasks throughout their development cycle.

500

You can click on the sort button to monitor projects in a specific risk category, or the export button for a report.

400

Filters

Filter the SD Elements Dashboard to highlight specific date ranges or applications.

Filter by date

Steps

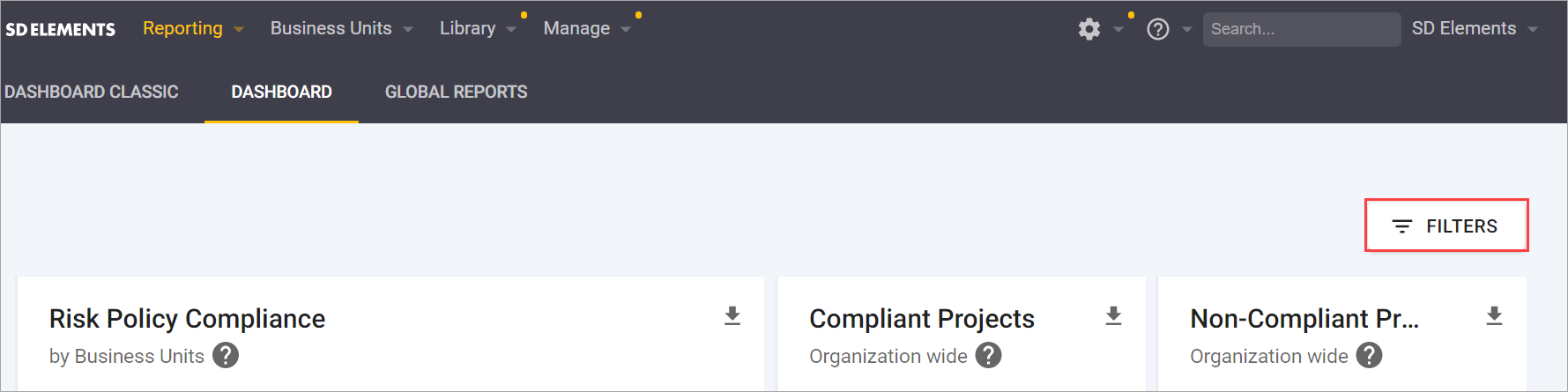

  1. From the Dashboard, click on the Filters button.

    dashboard date filter 1 button

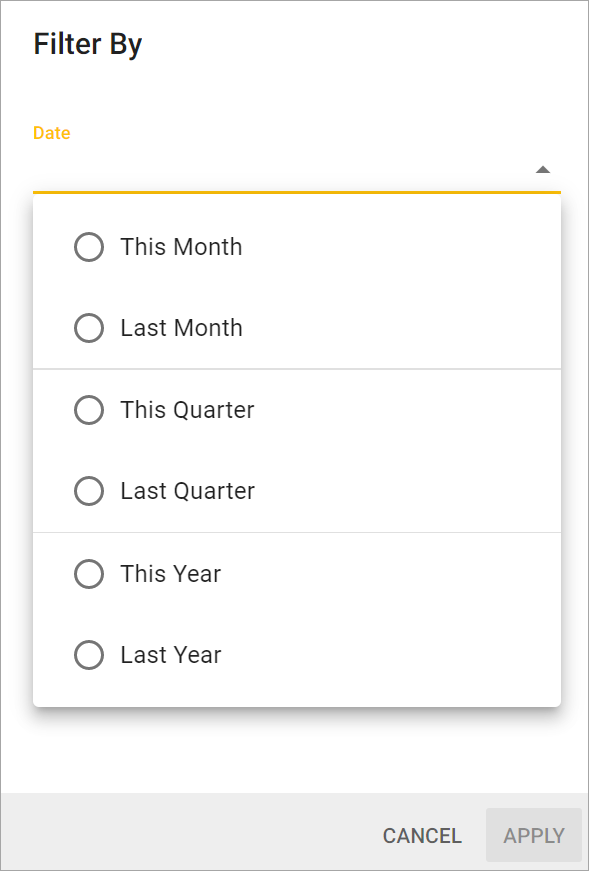

  2. Select one or more date ranges to filter your Dashboard by.

    300
  3. Click on Apply.

Your SD Elements Dashboard is now filtered by the dates you selected. Remove date filters by clicking on the Filters button, and then clicking on the x to the right of the Date field.

Filter by application

Steps
  1. From the Dashboard, click on the Filters button.

    dashboard app filter 1 button

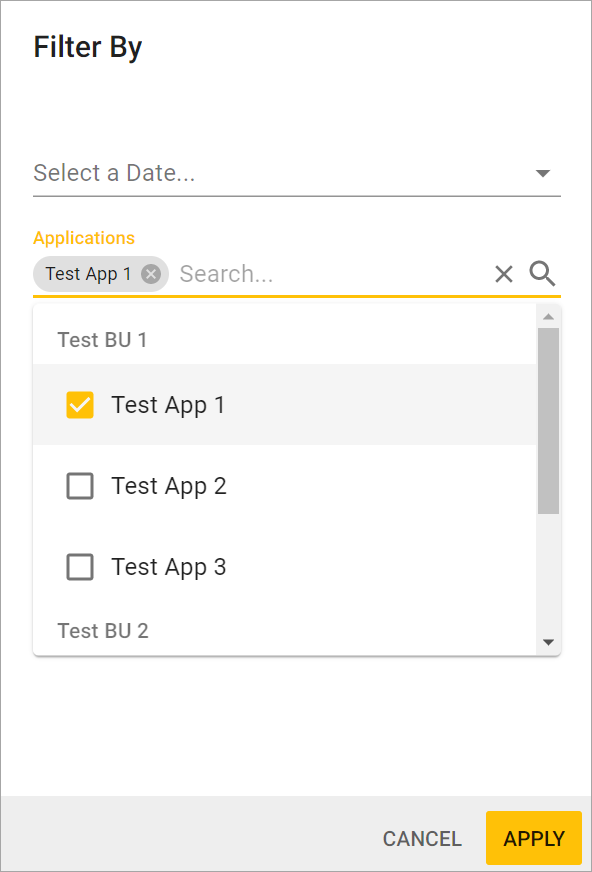

  2. Select or enter one or more application names. Applications are divided by business unit.

    300
  3. Click on Apply.

Your SD Elements Dashboard is now filtered by the applications you selected. Remove application filters by clicking on the Filters button, and then clicking on the x to the right of the application names.
